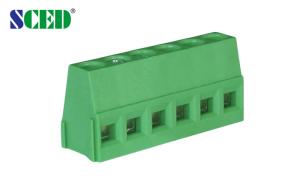

Raising Series Pitch 5.08mm 300V 10A PCB Terminal block Popular Item for Power Device

Name: Raising Series Pitch 508mm 300V 10A PCB Terminal block Popular Item for Power Device
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TJ508-00V-T1

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Contact Now

Raising Series Pitch 5.08mm 300V 10A PCB Terminal block Popular Item for Power Device

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/10		300/10
Wire Range AWG	12-26		12-26
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	250 / 10	400 / 10	630 / 10
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm²	2.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Brass / Nickel Plated
Terminal / Plating	Brass / Tin Plated
Screw / Plating	Steel / Zinc Plated
Other Data
PCB Hole Diameter mm	φ1.4
Stripping Length mm	6-7
Screw / Torque / lbf.in	M3 / 4.4-5.3

Raising Series Pitch 5.08mm 300V 10A PCB Terminal block Popular Item for Power Device

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Raising Series Pitch 5.08mm 300V 10A PCB Terminal block Popular Item for Power Device

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

Raising Series Pitch 5.08mm 300V 10A PCB Terminal block Popular Item for Power Device
