300V 32A Din Rail Terminal Blocks Electrical 6.2mm Width OEM ODM

Name: 300V 32A Din Rail Terminal Blocks Electrical 62mm Width OEM ODM
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TR-4N

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Applications : Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev

Color : Grey

Deck : Double decks

Type : Din Rail Terminal Blocks,Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

Width : 6.2mm

Wire Range : 24-10

Rated Current : 32A

Rated Voltage : 300V

Contact Now

300V 32A Din Rail Terminal Blocks Electrical 6.2mm Width OEM ODM

Detailed product Description:

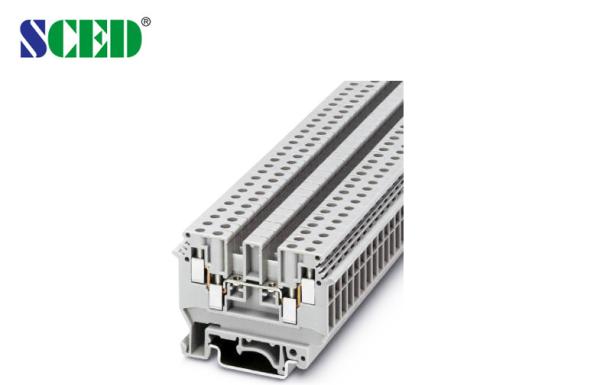

300V 32A 6.2mm Compact Din Rail Terminal Blocks, Rail Mounted Electrical Terminal Block AWG: 24-10

Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

□Single Deck; ■Double decks; □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

300V 32A Din Rail Terminal Blocks Electrical 6.2mm Width OEM ODM

Parameter and Drawing Specifications:

Description Color	Type
Terminal Grey	TR-4N
End Cover Grey	D-TR-4
Fixed Bridge	FBRI 10-6 Imax: 34A
Insertion Bridge	EB 10-6 Imax: 34A
Separating Plate	TS-KK3
Partition Plate
Zack Strip White	ZB6
Screwdriver	SZS0.6×3.5
Rail Material	aluminum
Dimensions mm	6.2/63.5/1.5
Height (U35: 7.5/U35: 15G 32) mm	47/54.5/52.5
Screw / Torque Nm	M3 / 0.6-0.8
Stripping Length mm	8
IEC Technical Data
Max. Load Current / Cross Section A / mm²	32/4
Rated Surge Voltage / Contamination Class KV / -	6 / 3
Surge Voltage Category	Ⅲ

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
