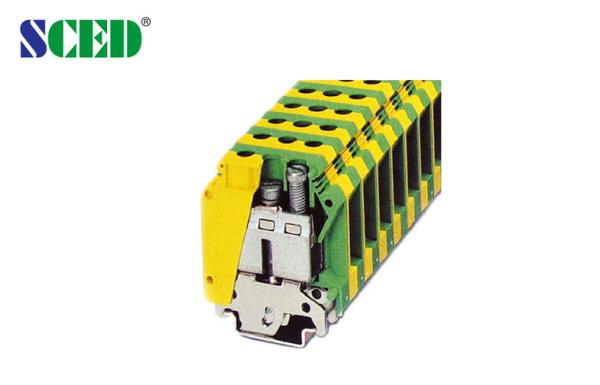

Rail Mounted Terminal Blocks , 15.2mm Rail Terminal Connectors

Name: Rail Mounted Terminal Blocks 152mm Rail Terminal Connectors
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TR-KG35N

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : Rail Mounted Terminal Blocks, Electrical terminal Blocks, Terminal block connectors

Wire Range : 18-1/0

Applications : Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev

Wire Inlet : Right angle wire inlet

Terminal Width : 15.2mm

Deck : Single Deck

Contact Now

Parameter and Drawing Specifications:

Description Color	Type
Terminal Green & Yellow	TR-KG35N
Zack Strip White	ZB10 SZS1.0x6.5
Rail Material	Aluminum / Steel
Dimensions	15.2/50
Height (U35: 7.5/U35: 15G 32) mm	62/69.5/67
Wire Fixing Screw / Torque Nm	M6 / 3.2-3.7
Center Fixing Screw / Torque Nm	M5 / 2.5-3
Stripping Length mm	15

Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

Detailed product Description:

Terminal Width: 15.2mm, AWG:18-1/0, Din Rail Terminal Blocks, Ground Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

How to order:

Rail Mounted Terminal Blocks , 15.2mm Rail Terminal Connectors
