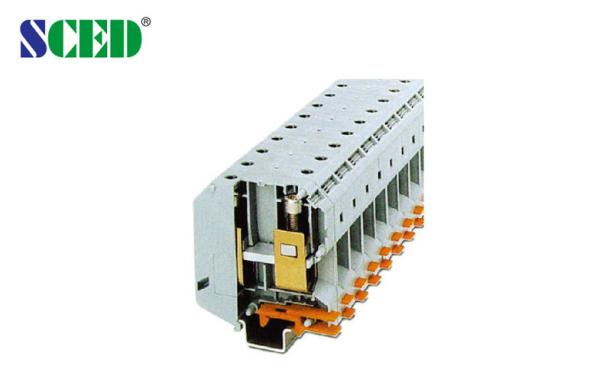

25.0mm , AWG 2 - 4 / 0 , Din Rail Terminal Blocks With Right Angle Wire Inlet

Name: 250mm AWG 2 4 0 Din Rail Terminal Blocks With Right Angle Wire Inlet
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TR-H95

MOQ : 200

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : Rail Mounted Terminal Blocks, Electrical terminal Blocks, Terminal block connectors

Wire Range : 2-4/0

Rated Voltage : 600V

Rated Current : 230A

Color : Grey

Applications : Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev

Wire Inlet : Right angle wire inlet

Terminal Width : 25.0mm

Contact Now

Parameter and Drawing Specifications:

Description Color	Type
Terminal Grey	TR-H95
End Cover Grey
Fixed Bridge	EB 2-25/TR-H Imax: 232A FBI 3-25/TR-H
Insertion Bridge
Separating Plate
Partition Plate
Zack Strip White	ZB10
Screwdriver
Rail Material	aluminum
Dimensions mm	25/83
Height (U35: 7.5/U35: 15G 32) mm	97.5/95.5
Screw / Torque Nm	M8 / 15-20
Stripping Length mm	33
IEC Technical Data
Max. Load Current / Cross Section A / mm²	232 / 95
Rated Surge Voltage / Contamination Class KV / -	8 / 3
Surge Voltage Category	Ⅲ

Detailed product Description:

Terminal Width: 25.0mm, 600V 230A, AWG:2-4/0, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

How to order:

25.0mm , AWG 2 - 4 / 0 , Din Rail Terminal Blocks With Right Angle Wire Inlet

Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
