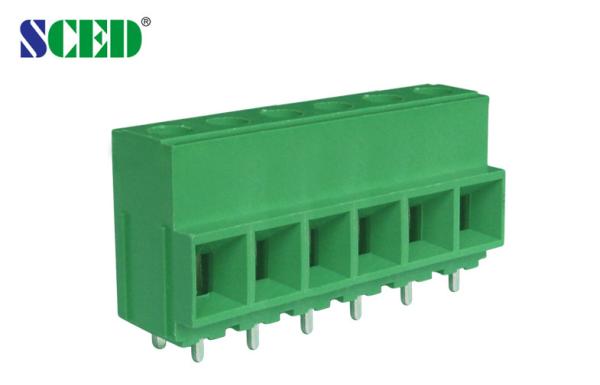

Pitch 5.08mm 7.62mm 10.16mm Screw Terminal Block din rail solder pin 300V UL94 V-0 Housing Plastic

Brand Name : SCED

Model Number : TJ952-01

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Insulation Material : PA66

Rated Voltage : 300V

Rated Surge Voltage : 8 KV

Screw : M4//Steel/Zinc Plated

Clamp Cage : Brass

Rated Connecting Capacity : 10 mm²

Color : Green

Torque : 10.6-13

Contact Now

Screw Terminal Block din rail solder pin 300V 57A UL94 V-0 Housing Plastic

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300/57

300/57

Wire Range AWG

6-22

6-22

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

690 / 57

1000 / 57

1000 / 57

Rated Surge Voltage KV

8

8

8

Rated Connecting Capacity mm2

10

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data

PCB Hole Diameter mm

φ2.4

Stripping Length mm

9-11

Screw / Torque / lbf.in

M4 / 10.6-13

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
