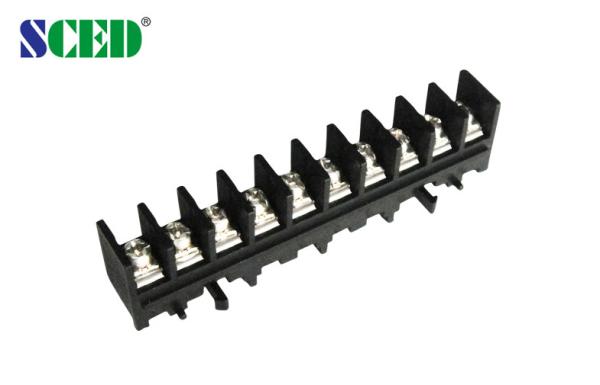

Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE

  • 1
  • 2

Brand Name : SCED

Model Number : TB762-20V

Certification : UL, CE

Place of Origin : China

MOQ : 500pcs

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Number of Contacts : 2P-18P

Pitch : 7.62mm

Rated Current : 15A

Rated Voltage : 300V

Wire Range : 14-22 AWG

Color : Black, Other color available

Type : Barrier Terminal Block,Power terminal blocks, Electrical terminal Blocks

Application : PCB, Frequency Converters, Server Site, Switch,etc

Contact Now

Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 15

300 / 10

Wire Range AWG

14-22

14-22

IEC Technical Data

Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current V/A

500 / 24

630 / 24

800 / 24

Rated Surge Voltage KV

4

4

4

Rated Connecting Capacity mm2

2.5

Material

Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data

PCB Hole Diameter mm

φ1.9

Stripping Length mm

7-8

Screw / Torque / lbf.in

M 3 / 5-7

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

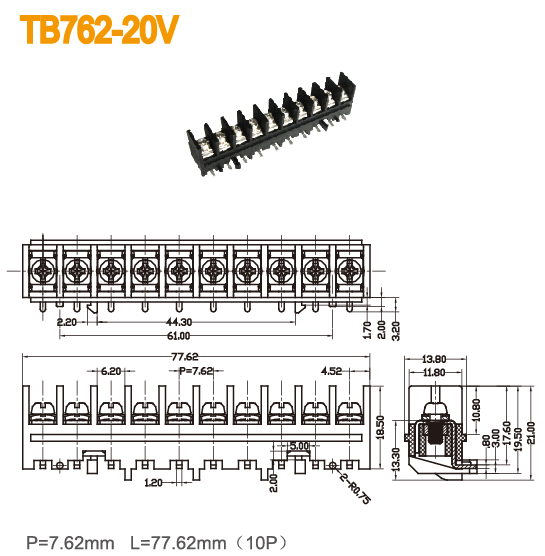

Drawing Photo

Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE

Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE
