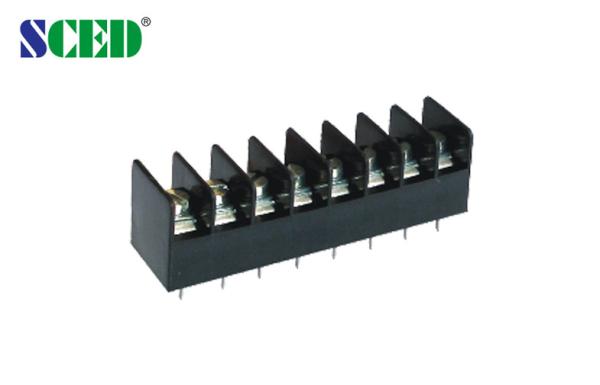

10A High Voltage Barrier Terminal Block Connectors Pitch 6.35mm 18 AWG - 22 AWG

Name: 10A High Voltage Barrier Terminal Block Connectors Pitch 635mm 18 AWG 22 AWG
Brand: SCED
Price: 1 USD

Place of Origin : China

Brand Name : SCED

Certification : UL, CE

Model Number : TB762-18

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Pitch : 6.35mm

Rated Current : 10A

Rated Voltage : 300V

Type : Barrier Terminal Block,Power terminal blocks, Electrical terminal Blocks

Wire Range : 18-22

Contact Now

10A High Voltage Barrier Terminal Block Connectors Pitch 6.35mm 18 AWG - 22 AWG

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 10		300 / 10
Wire Range AWG	18-22		18-22
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	320 / 10	320 / 10	630 / 10
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm²	0.75
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass /Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ1.5
Stripping Length mm	7-8
Screw / Torque / lbf.in	M 3 / 5.5-7

10A High Voltage Barrier Terminal Block Connectors Pitch 6.35mm 18 AWG - 22 AWG

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

10A High Voltage Barrier Terminal Block Connectors Pitch 6.35mm 18 AWG - 22 AWG

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

10A High Voltage Barrier Terminal Block Connectors Pitch 6.35mm 18 AWG - 22 AWG

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
