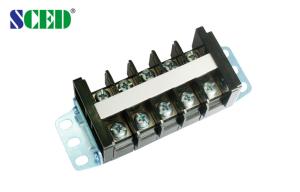

600V 60A Electrical terminal Blocks , 14.00mm High Current Terminal Block

Name: 600V 60A Electrical terminal Blocks 1400mm High Current Terminal Block
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TR60-01-BM0-N7

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : Panel Mount Terminal Block,Barrier terminal blocks, Power terminal blocks, Electrical terminal Block

Pitch : 14.00mm

Number Of Contacts : Any Poles Available

Wire Range : 4-20

Rated Voltage : 600V

Rated Current : 60A

Color : Black

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Contact Now

Pitch 14.00mm, 600V 60A, any pole available, High Current Terminal connectors
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks

How to order:
600V 60A Electrical terminal Blocks , 14.00mm High Current Terminal Block

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 60	600 / 60
Wire Range AWG	4-20	4-20
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	800 /60	1000 / 60	1000 / 60
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	14
Material
Insulation Material / Inflammability Class	PC / UL94, V-0
Conduction Board/ Plating	Brass /Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	12-15
Screw Torque mm	M5 / 14-18

600V 60A Electrical terminal Blocks , 14.00mm High Current Terminal Block

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
