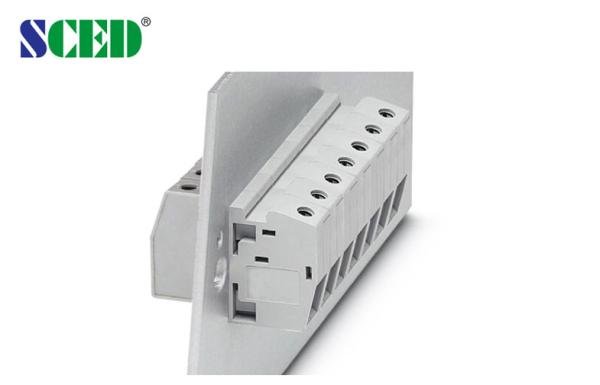

Rail Through Panel Terminal Blocks Screwless Right Angle Wire Inlet

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TR-10N-04

MOQ : 200

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 100K poles each monthly

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Grey

Number of Contacts : Any Poles Available

Pitch : 10.1mm

Rated Current : 65A

Rated Voltage : 300V

Type : Through Panel Terminal Block,Through Wall terminal blocks, Bulkhead connectors

Wire Range : 6-24

Contact Now

Rail Through Panel Terminal Blocks Screwless Right Angle Wire Inlet

■ Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■ Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color
you want.
Through Wall terminal blocks, Bulkhead connectors, Feed Through connectors, Electrical terminal Blocks,
terminal block connectors

How to order:


Rail Through Panel Terminal Blocks Screwless Right Angle Wire Inlet


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 65

300 / 10

Wire Range AWG

6-24

6-24

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

630 / 76

800 / 76

1000 / 76

Rated Surge Voltage KV

6

6

6

Rated Connecting Capacity mm2

10

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data

Stripping Length mm

11

Screw / Torque / lbf.in

M4 / 10.6-13



Rail Through Panel Terminal Blocks Screwless Right Angle Wire Inlet


Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
