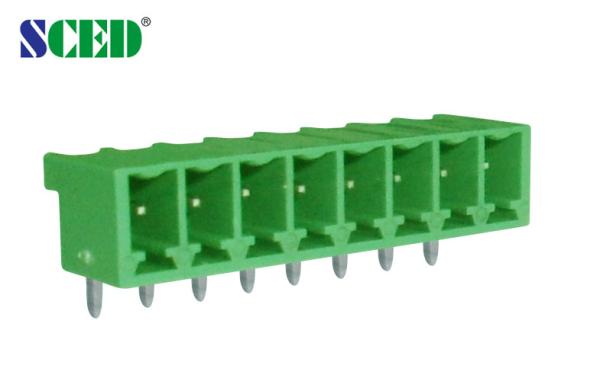

Brass Male Plug in Terminal Block Right Angle 3.81mm Pitch 300V/8A 2-24P

Name: Brass Male Plug in Terminal Block Right Angle 381mm Pitch 300V8A 224P
Brand: SCED
Price: 0.015 USD

China Brass Male Plug in Terminal Block Right Angle 3.81mm Pitch 300V/8A 2-24P factory

Brand Name : SCED

Model Number : TP381H-07V

Certification : UL,CE

Place of Origin : China

MOQ : 500 Piece/Pieces

Price : USD 0.015-0.032 per Pole

Payment Terms : L/C, T/T

Supply Ability : 1000000 Pole/Poles per Month

Delivery Time : 5-20 Working Days

Packaging Details : Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.

Pitch : 3.81mm

Voltage : 300V

Current : 8A

Poles : 2-24 poles

Pin Dimensions : 0.8*0.8mm

PCB Hole Diameter : 1.2mm

Terminal : Brass

Insulation Material : PA66

Inflammability Class : UL94-V0

Type : Male part

Contact Now

Male Plug in Terminal Block Right Angle 3.81mm Pitch 300V/8A 2-24P Brass

Detailed product Description:

Pitch: 3.81mm, 300V 8A, 2P-24P, Socket, Pluggable Terminal blocks, Plug-in terminal block

Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

Levels: ■Single Deck; □Double decks; □Triple decks

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Applications:

Our terminal blocks can be used in the following fields and industries:

1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

2. Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator and so on.

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/8
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	160 / 8	160 / 8	320 / 8
Rated Surge Voltage KV	2.5	2.5	2.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Terminal / Plating	Brass / Tin Plated
Other Data
PCB Hole Diameter mm	φ1.2
Pin Dimension mm	0.8 x 0.8

Competitive Advantage:

1. Flexible to design the exact part per customers’ demand

2. Stable good quality and competitive price

3. More than 1000 models for selection

4. Quick response and good after-sales service.

Brass Male Plug in Terminal Block Right Angle 3.81mm Pitch 300V/8A 2-24P
