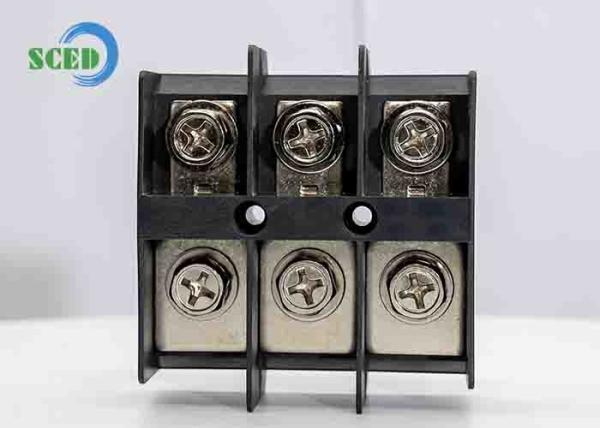

High Current Terminal connector Pitch 25.00mm 600V 150A PA66 3P M8

Name: High Current Terminal connector Pitch 2500mm 600V 150A PA66 3P M8
Brand: SCED
Price: 1 USD

China High Current Terminal connector Pitch 25.00mm 600V 150A PA66 3P M8 factory

Brand Name : SCED

Model Number : TR150-04

Certification : UL, CE, CQC

Place of Origin : Suzhou, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 20-45 working days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand.

Wire Connection : Direct

Inflammability Class : UL94, V-0

Operating Temperature : -40°C to 105°C

Rated Current : 150A

Pitch : 25.00mm

Conduction Board : Cooper/Nickel Plated

Voltage : 600V

Wire Range : 1/0-20 AWG

Contact Now

High Current Terminal connector Pitch 25.00mm 600V 150A PA66 3P M8

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 150	600 / 150
Wire Range AWG	1/0-20	1/0-20
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	800 /150	1000 / 150	1000 / 150
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	50
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Conduction Board/ Plating	Copper /Nickel Plated
Screw / Plating	Steel / Nickel Plated
Other Data
Stripping Length mm	18-19
Screw Torque mm	M8 / 30-32

High Current Terminal connector Pitch 25.00mm 600V 150A PA66 3P M8

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

High Current Terminal connector Pitch 25.00mm 600V 150A PA66 3P M8

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

High Current Terminal connector Pitch 25.00mm 600V 150A PA66 3P M8
