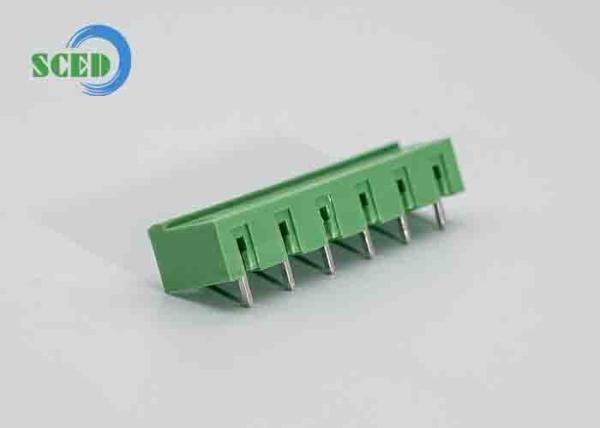

Green PCB Plug In Terminal Block Electrical 7.62mm PA66 300V 18A Brass Terminal

  • 1
  • 2

Brand Name : SCED

Model Number : TP508H-76V

Certification : UL, CE

Place of Origin : Suzhou, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 20-45 working days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand.

Wire Inlet : Right angle wire inlet

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Green

Number of Contacts : 2P-16P

Pitch : 7.62mm

Rated Current : 18A

Rated Voltage : 300V

Type : Plug In Terminal Blocks,Pluggable Terminal Blocks, Plug-in Terminal Blocks

Contact Now

Green PCB Plug In Terminal Block Electrical 7.62mm PA66 300V 18A Brass Terminal


■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels

This male header match with female plugs’ series: TP508P-00, TP508P-02, TP508P-03, TP508P-04, TP508P-05, TP508P-07
Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors


How to order:
Green PCB Plug In Terminal Block Electrical 7.62mm PA66 300V 18A Brass Terminal



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 18

300 / 10

Wire Range AWG

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

400 / 18

630 / 18

1000 / 18

Rated Surge Voltage KV

6

6

6

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data

PCB Hole Diameter mm

φ1.4

PinDimension mm

1.0 x 1.0



Green PCB Plug In Terminal Block Electrical 7.62mm PA66 300V 18A Brass Terminal



Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
